Water quality benefits of Green Stormwater Infrastructure

This page provides information on the water quality benefits of green stormwater infrastructure (GSI) practices (best management practices). The water quality benefit of a practice is defined by its ability to attenuate pollutants from stormwater runoff and prevent them from reaching receiving waters. All GSI practices provide water quality benefits since that is their primary function.

These benefits vary between each practice, primarily as a result of the mechanism by which pollutants are attenuated.

Practice Water quality benefit Notes
Bioretention ● Infiltration is most effective; potential phosphorus leaching in filtration practices
Tree trench and tree box ● Infiltration is most effective; potential phosphorus leaching in filtration practices
Green roof ◔ Potential phosphorus leaching
Vegetated swale ◔ Infiltration is most effective; less effective for dissolved pollutants
Vegetated filter strip ◔ Removes solids; less effective for dissolved pollutants
Permeable pavement ◕ Infiltration is most effective
Constructed wetland ◑ Removes solids; less effective for dissolved pollutants
Rainwater harvesting ◕ Can be used on low permeability soils
Level of benefit: ◯ - none; ◔; - small; ◑ - moderate; ◕ - large; ● - very high

Contents

Green infrastructure and multiple benefits

Green infrastructure (GI) encompasses a wide array of practices, including stormwater management. Green stormwater infrastructure (GSI) encompasses a variety of practices primarily designed for managing stormwater runoff but that provide additional benefits such as habitat or aesthetic value.

There is no universal definition of GI or GSI (link here for more information). Consequently, the terms are often interchanged, leading to confusion and misinterpretation. GSI practices are designed to function as stormwater practices first (e.g. flood control, treatment of runoff, volume control), but they can provide additional benefits. Though designed for stormwater function, GSI practices, where appropriate, should be designed to deliver multiple benefits (often termed "multiple stacked benefits". For more information on green infrastructure, ecosystem services, and sustainability, link to Multiple benefits of green infrastructure and role of green infrastructure in sustainability and ecosystem services.

Pollutant removal percentages for bmps

The adjacent table provides a summary of estimated pollutant removal for stormwater bmps. However, pollutant removal is a function of many factors, including design, construction, and maintenance of the BMP; quality of incoming stormwater; time of year; rainfall and watershed characteristics; and so on. The user is encouraged to read the section called Factors affecting pollutant removal.

Median pollutant removal percentages for BMPs
Median pollutant removal percentages for several stormwater BMPs.
Practice TSS TP PP DP TN Metals1 Bacteria Hydrocarbons
More detailed information and ranges of values can be found in other locations in this manual, as indicated in the table. Sources.
Infiltration2 3 3 3 3 3 3 3 3
Biofiltration and Tree trench/tree box with underdrain 80 link to table 50 35 95 80
Sand filter 85 50 85 0 35 80 50 80
Iron enhanced sand filter 85 65 or 746 85 40 or 606 35 80 50 80
Dry swale (no check dams) 68 link to table 35 80 0 80
Wet swale (no check dams) 35 0 0 0 15 35 35 NSD
Constructed wet ponds4, 5 84 50 or 685 84 8 or 485 30 60 70 80
Constructed wetlands 73 38 69 0 30 60 70 80
Permeable pavement (with underdrain) 74 41 74 0 NSD NSD NSD NSD
Green roofs 85 0 0 0 NSD NSD NSD NSD
Vegetated (grass) filter 68 0 0 0 NSD NSD NSD NSD
Harvest and reuse Removal is 100% for captured water that is infiltrated. For water captured and routed to another practice, use the removal values for that practice.
TSS=Total suspended solids, TP=Total phosphorus, PP=Particulate phosphorus, DP=Dissolved phosphorus, TN=Total nitrogen
NSD - not sufficient data.  NOTE:  The values for filtration practices in this table are for filtered water; however, some filtration bmps, such as biofiltration, provide some infiltration.
1Data for metals is based on the average of data for zinc and copper
2BMPs designed to infiltrate stormwater runoff, such as infiltration basin/trench, bioinfiltration, permeable pavement with no underdrain, tree trenches with no underdrain, and BMPs with raised underdrains.
3Pollutant removal is 100 percent for the volume infiltrated, 0 for water bypassing the BMP. For filtered water, see values for other BMPs in the table.
4Dry ponds do not receive credit for volume or pollutant removal
5Removal is for Design Level 2. If an iron-enhanced pond bench is included, an additional 40 percent credit is given for dissolved phosphorus. Use the lower values if no iron bench exists and the higher value if an iron bench exists.
6Lower values are for Tier 1 design. Higher values are for Tier 2 design.
Download an Excel workbook containing this table.



Bioretention

photo of a rain garden

A rain garden in a residential development. Photo courtesy of Katherine Sullivan.

Bioretention is an excellent stormwater treatment practice due to the variety of pollutant removal mechanisms, including vegetative filtering, settling, evaporation, infiltration, transpiration, biological and microbiological uptake, and soil adsorption. Bioretention can be designed as an effective infiltration / recharge practice, particularly when parent soils have high permeability (> ~ 0.3 inches per hour). Bioretention designed for infiltration (bioinfiltration) removes 100 percent of pollutants for the portion of runoff water that is infiltrated, although there may be impacts to shallow groundwater. Bioretention designed as filtration (biofiltration) employs engineered media that is effective at removing solids, most metals, and most organic chemicals. Removal of phosphorus depends on the media (link here).

The following design considerations can improve the water quality function of bioretention practices.

  • Maximize infiltration by designing with the maximum ponded depth that can be infiltrated in 48 hours, up to 1.5 feet (to protect vegetation). Where space allows, surface area can also be increased. Utilize multiple bioretention practices in series. On lower permeability soils where an underdrain is used, raise the underdrain to the maximum extent possible, allowing water stored in the bioretention media below the underdrain to drain in 48 hours. Use an upturned elbow in underdrained systems.
  • For bioinfiltration (bioretention without an underdrain), use a high organic matter media to maximize pollutant removal
  • For biofiltration (bioretention with an underdrain), use a media mix that does not export phosphorus or use an amendment to attenuate phosphorus.

See Calculating credits for bioretention

Tree Trench

photo for tree trench system, Central Corridor Light rail project

Photo of the completed tree system for the Central Corridor Light Rail Transit project, St. Paul, Minnesota. Image courtesy of the Capitol Region Watershed District.

Tree trenches and tree boxes are a type of bioretention practice and are therefore an excellent stormwater treatment practice due to the variety of pollutant removal mechanisms including vegetative filtering, settling, evaporation, infiltration, transpiration, biological and microbiological uptake, and soil adsorption. Tree trenches and tree boxes can be designed as an effective infiltration / recharge practice, particularly when parent soils have high permeability (> ~ 0.3 inches per hour).

The following design considerations can improve the water quality benefits of tree trenches.

  • Maximize infiltration by designing with the maximum ponded depth that can be infiltrated in 48 hours, up to 1.5 feet (to protect vegetation). Where space allows, surface area can also be increased.
  • Utilize multiple bioretention practices in series.
  • On lower permeability soils where an underdrain is used, raise the underdrain to the maximum extent possible, allowing water stored in the engineered media below the underdrain to drain in 48 hours. Use an upturned elbow in underdrained systems.
  • For bioinfiltration (bioretention without an underdrain), use a high organic matter media to maximize pollutant removal.
  • For biofiltration (bioretention with an underdrain), use a media mix that does not export phosphorus or use an amendment to attenuate phosphorus.

See Calculating credits for tree trenches and tree boxes

Permeable Pavement

a photo illustrating porous concrete

Example of a new retrofit permeable parking lot at the University of Minnesota

Permeable pavement reduces the concentration of some pollutants either physically (by trapping it in the pavement or soil), chemically (bacteria and other microbes can break down and utilize some pollutants), or biologically (plants that grow in-between some types of pavers can trap and store pollutants). Permeable pavement functioning as an infiltration practice (no underdrain) effectively treats most pollutants, including dissolved pollutants. When an underdrain is employed, permeable pavement is effective at removing solids and pollutants attached to those solids. Additionally, permeable pavements can reduce the need for road salt.

The following design considerations may improve the water quality benefits of permeable pavement.

  • Ensure the subgrade is flat. Since roads are typically sloped, utilize terracing in the subgrade to achieve flat slopes. See page 5 of the North Carolina design guidance.
  • Incorporate signage into the design to ensure maintenance activities do not affect the infiltration properties of the pavement.
  • Design to maximize retention time and prevent short-circuiting. Storage may be increased by use of geotextile subgrades. An example is presented by Nnadi et al, (2014).
  • Plan for the expected loading on the permeable pavement and ensure capabilities and reduce compaction or clogging
  • Use in conjunction with other treatments to establish a treatment train or reuse water on site
  • Some research has been conducted into use of geotextiles and other amendments for enhancing water quality treatment. See Ostrom and Davis (2019) and Nnadi et al. (2014).

See Calculating credits for permeable pavement

Green Roofs

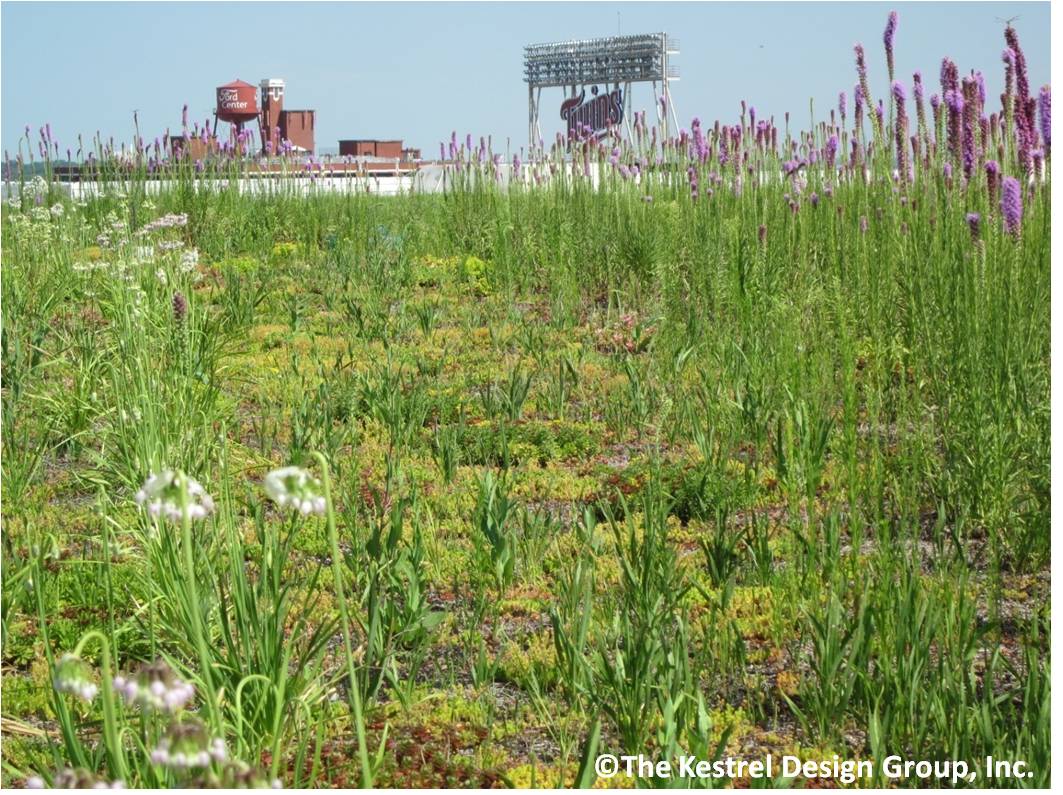

image of target center green roof, Minneapolis, MN

Vegetation on the Target Center Arena green roof. vegetation consisted of a pregrown Sedum mat supplemented with 22 species of plugs and 16 species of seed native to Minnesota’s bedrock bluff prairies. Image Courtesy of The Kestrel Design Group, Inc.

Green roofs provide stormwater treatment benefits, but because pollutant concentrations are generally low, these benefits are limited. Pollutant removal mechanisms include filtering, evaporation, transpiration, biological and microbiological uptake, and soil adsorption.

Green roofs employ engineered media that is effective at removing solids, most metals, and most organic chemicals. Green roofs are generally not effective at retaining phosphorus because of the organic matter content in the media. They therefore are likely to lose phosphorus during the first years after establishment, but loss may gradually diminish over time. Use of low organic matter media, media that does not leach phosphorus (e.g. peat), or amendments (e.g. iron filings) may minimize or eliminate phosphorus losses from green roofs.

See Calculating credits for green roofs and this technical support document.

Water Re-use and Harvesting

This picture shows a cistern located at Mississippi Watershed Management Organization

Cistern located at Mississippi Watershed Management Organization

Water re-use and water harvesting facilities can help improve water quality by capturing stormwater runoff and reducing offsite discharges into the storm sewer system and nearby water resources. The nature of stormwater re-use facilities varies widely, thus there is great variability in their effectiveness to remove storm water pollutants. Most water re-use projects have been developed to meet non-potable water demands, such as agriculture, landscape, public parks, irrigation, etc. In these cases, the captured stormwater is removed from the waste stream and prevented from reaching receiving waters. Water re-use systems can be used to create or enhance wetlands and riparian (stream) habitats for streams that have been impaired or dried from water diversion, thus enhancing the water quality benefits of these other practices.

The following design considerations may enhance the water quality benefits of harvest and reuse systems.

See Calculating credits for stormwater and rainwater harvest and use/reuse

Constructed Ponds and Wetlands

CAUTION: Using constructed wetlands for extensive water quality treatment may impair the wetland for other functions, such as habitat.

This photo shows a an example of a stormwater wetland

Example of a stormwater wetland in a largely undeveloped area.

Pollutants are removed from stormwater runoff in a wetland through uptake by wetland vegetation and biota (algae, bacterial), vegetative filtering, soil adsorption, and gravitational settling in the slow-moving marsh flow. Volatilization and chemical activity can also occur, breaking down and assimilating a number of other stormwater contaminants such as hydrocarbons. Wetlands effectively remove solids and pollutants associated with solids. They are only moderately effective at removing nitrogen and phosphorus. Some designs or poorly designed and maintained wetlands may export phosphorus. For information on pollutant removal for stormwater wetlands, link to Calculating credits for stormwater wetlands.

The following design considerations may improve the water quality benefits of constructed ponds and wetlands (Balderas-Guzman et al., 2018)

  • Distribute constructed wetlands systemically throughout a watershed to increase potential for delivering networked benefits
  • Design to maximize retention time and prevent short-circuiting
  • Create ecological diversity within the wetland to expose water to a variety of conditions where different treatment processes can take place
  • Create shallow zones where water will come into contact with plant roots and microbes and deeper zones where anaerobic processes can take place
  • Utilize a length to width ratio of 20:1
  • Construct multiple wetland cells
  • Ensure adequate pretreatment to minimize pollutant loading that might impair other benefits, such as habitat

See Calculating credits for stormwater wetlands

Swale with Check Dam (with and without underdrain)

photo of a dry swale

Photo of a dry swale. Courtesy of Limnotech.

Water quality benefits of swales depend on the type of swale (Jamil, 2009). See Terminology for swales.

photo of a wet swale

Photo of a wet swale. Courtesy of Limnotech.
  • Dry swales: Water quality benefits of dry swales primarily depend on the presence or absence of check dams and underlying soils. When impermeable check dams are used on permeable soils (hydrologic group A or B soils), swales act as infiltration practices and provide water quality benefits similar to other infiltration practices. If check dams are permeable, swales provide water quality treatment through sedimentation processes. When check dams are absent, swales may provide some filtration of water by vegetation and some infiltration if underlying soils are permeable.
  • Wet swales: Wet swales are generally ineffective for water quality treatment.
  • Step pools: Similar to dry swales, step pools can provide effective water quality treatment when impermeable check dams are employed on permeable soils.
image of step pool

Stormwater step pool. Courtesy of Limnotech.

The following design considerations may improve the water quality benefits of swales. (Guzman et al., 2018; (Stagge et al., 2012; Purvis et al., 2018).

  • If underlying soils are permeable (HSG A or B), incorporate impermeable check dams into the design to promote infiltration. For wet swales incorporate permeable check dams to slow water movement and enhance filtration of solids.
  • For infiltration swales (swales without an underdrain), use a high organic matter media to maximize pollutant removal
  • Utilize side slopes as pretreatment by incorporating appropriate vegetation and geometry (e.g. dense grass, increased surface roughness, gentler and longer slopes)
  • Select vegetation with dense root systems
  • For swales (swales with an underdrain), use a media mix that does not export phosphorus or use an amendment to attenuate phosphorus.

See Calculating credits for dry swale (grass swale), Calculating credits for wet swale (wetland channel)

Infiltration practices

Several practices can be designed as either filtration or infiltration practices. These include bioretention, permeable pavement, and tree trenches without underdrains, swales with impermeable check dams, and harvest and reuse systems. These practices are discussed above. If the practice is designed to infiltrate stormwater runoff, water quality benefits of the practices are excellent as infiltration removes 100 percent of the pollutants captured by the practice. However, infiltration practices should be designed to avoid potential groundwater contamination, such as infiltration practices located on coarse-textured soils with groundwater tables near the land surface, or infiltrating runoff with high concentrations of potentially mobile pollutants. See the constraints section on this page.
